Nomadix Pro Roof Box

The Nomadix Pro Roof Box is a storage box designed to increase your vehicle's storage capacity. Perfect for long road trips, camping, skiing, or transporting large items like luggage, camping gear, skis, and folding strollers. It provides extra space and enhances the comfort of your travels.

You can refer to the user manual or quick start guide to quickly learn how to operate the product.

This product comes with a Limited Lifetime Warranty. For more warranty details, please visit our official website.

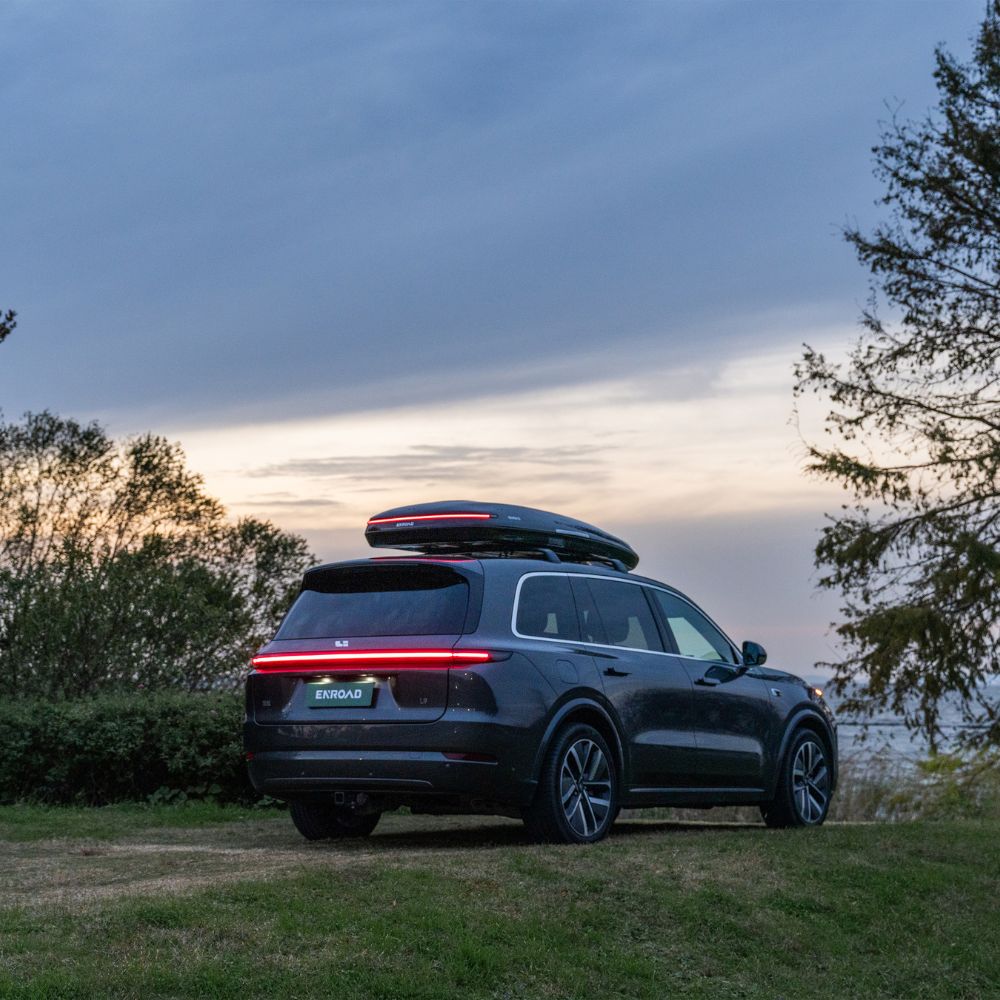

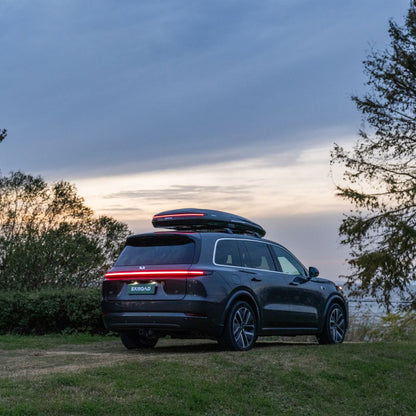

The full-width tail light of the Nomadix Pro Roof Box is designed to alert drivers behind you to the position of your vehicle. It does not require wiring from inside the car and is powered by the Roof Box's Trispark, a built-in large-capacity solar-rechargeable power bank (which can be removed for use as a camping light or power bank). It automatically stays on when the vehicle is moving and turns off 3 minutes after parking.

No, the tail light at the rear of the Roof Box is not a brake light, it is a full-width tail light.

No, it is powered by the large-capacity, solar-rechargeable Trispark power bank inside the Roof Box.

No. Only models marked with an "E" designation. Other models have a reflective strip.

The solar panel on the "E" model is 30W, with a working voltage of DC 12.4V.

The solar panel on the "E" model is 30W and has an XT301 output connector.

No. Only "E" models have built-in solar panels.

No. Only models marked with an "E" designation. Other models can order it as an accessory.

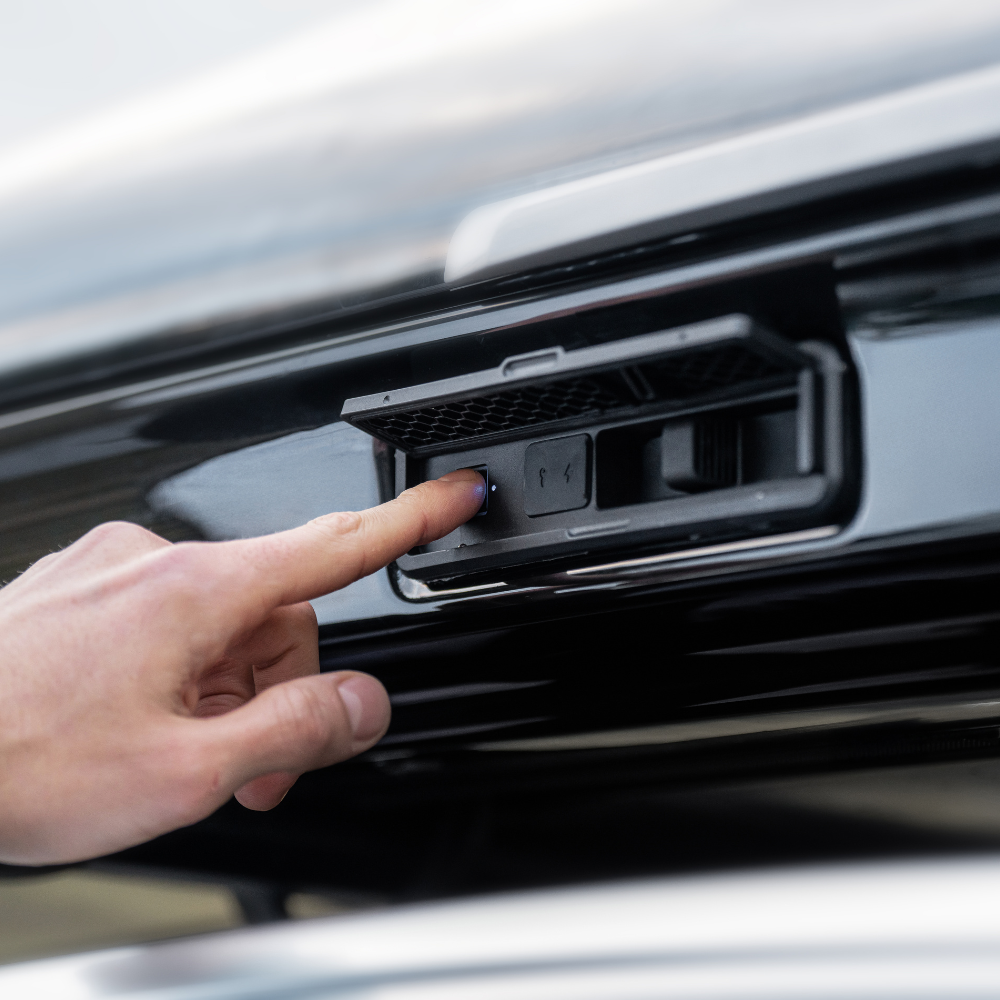

Each fingerprint lock is powered by 3 AA batteries, ensuring the lock functions properly in both high and low-temperature conditions.

You can use the included mechanical key to unlock it.

The fingerprint lock is powered by 3 AA batteries. A low battery indicator will light up when the battery is running low, so be sure to replace the battery promptly. If the fingerprint lock is completely out of battery power and cannot be unlocked, you can use a power bank or the USB-C emergency power input from the vehicle to supply power to the lock. (*The USB-C emergency power input only supports standard DC 5V/2A, not fast charging protocols.) You can also use the included emergency mechanical key to unlock it.

The Nomadix Pro Roof Box, from the materials to the key functional modules, has passed both high and low-temperature testing. Unlike conventional roof boxes, which are prone to frozen lock holes in winter, the Nomadix Pro can still be unlocked and opened using the fingerprint lock.

The Trispark uses a lithium iron phosphate battery, with a discharge temperature range of -20°C to 50°C/-4°F to 122°F, ensuring the full-width tail light works in these temperatures. Additionally, the fingerprint lock is powered by dry cell batteries, which allow it to function even in lower temperatures.

The Trispark has a built-in 24,000mAh lithium iron phosphate battery, capable of charging an iPhone 16 up to 3.5 times and supporting 18W fast charging. When used as a camping light, it provides run times up to 12 hours at full output and up to 240 hours at the minimum setting.

The Trispark can be recharged via the solar panel on the top of the Roof Box, keeping it ready for all-day use. It can also be recharged with fast chargers via the USB-C charging port.

Yes, it can be opened from both sides, and both sides are equipped with fingerprint locks.

Yes, the Nomadix Pro Roof Box is made from UV-resistant PMMA+ABS composite materials, offering excellent scratch resistance, color stability, and high-temperature endurance. It has passed multiple extreme environment tests, including high and low temperatures, UV resistance, etc., ensuring long-term durability and stable performance in outdoor conditions.

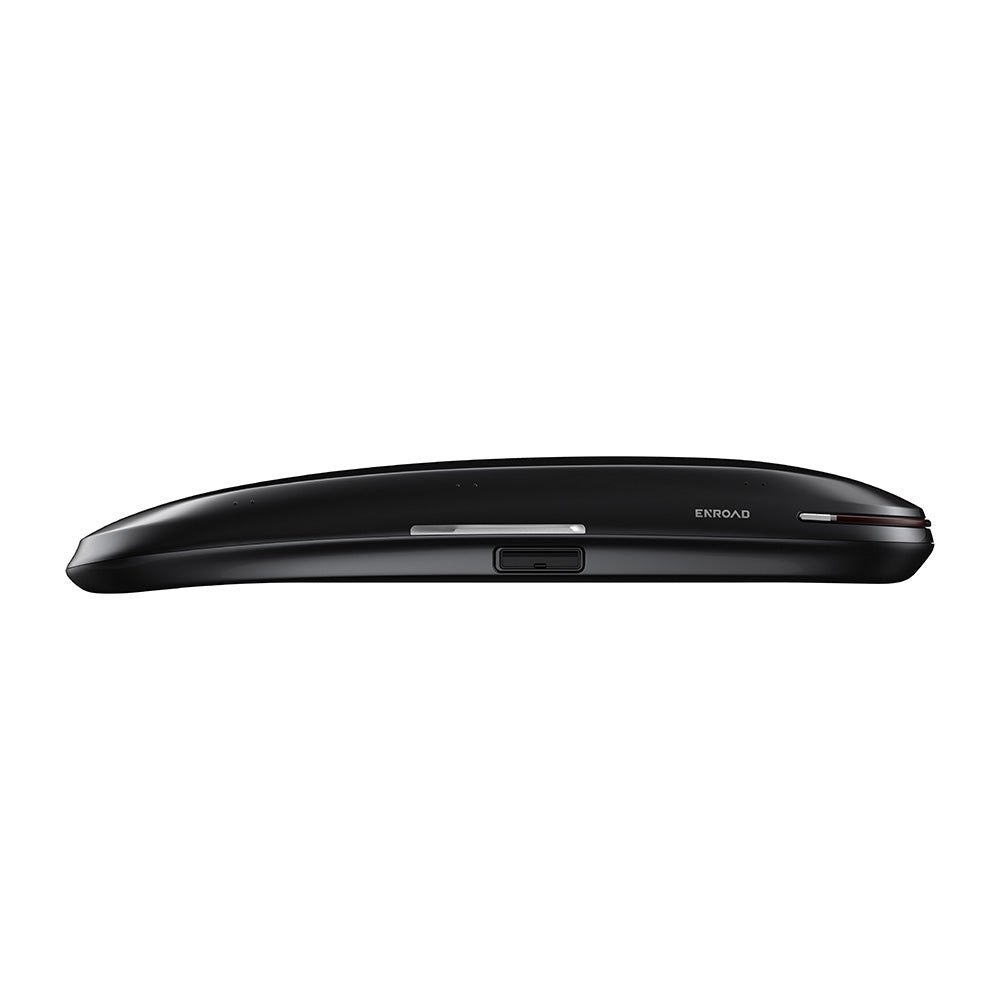

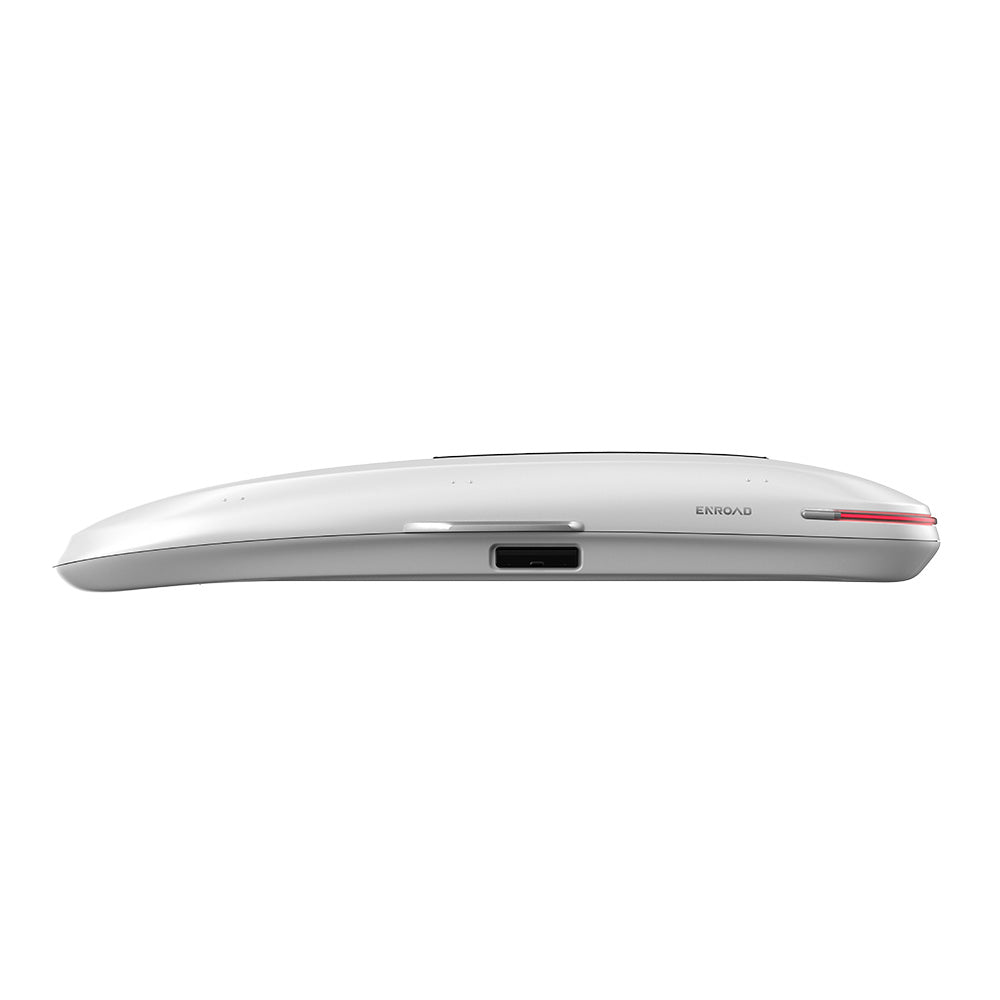

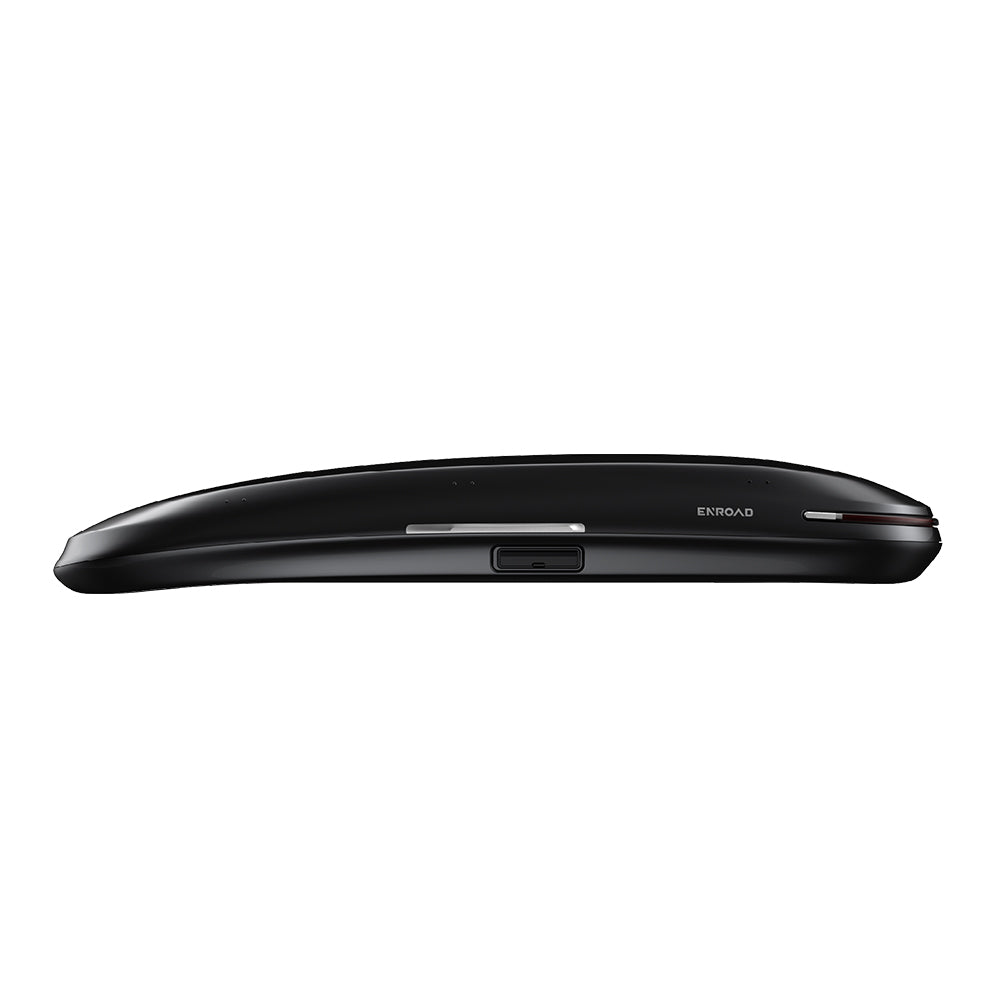

XL Slim, XL Slim E capacity: 14 cu ft (400L)
XL, XL E capacity: 18 cu ft (500L)

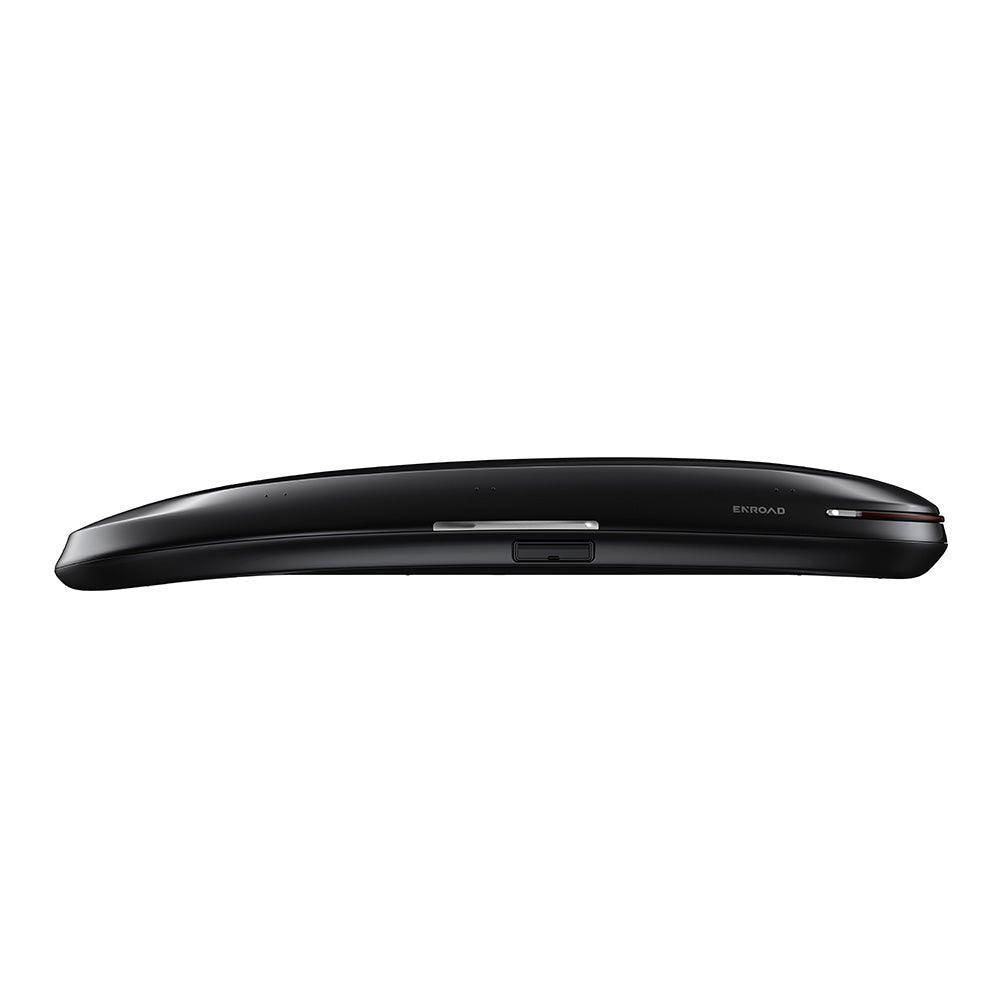

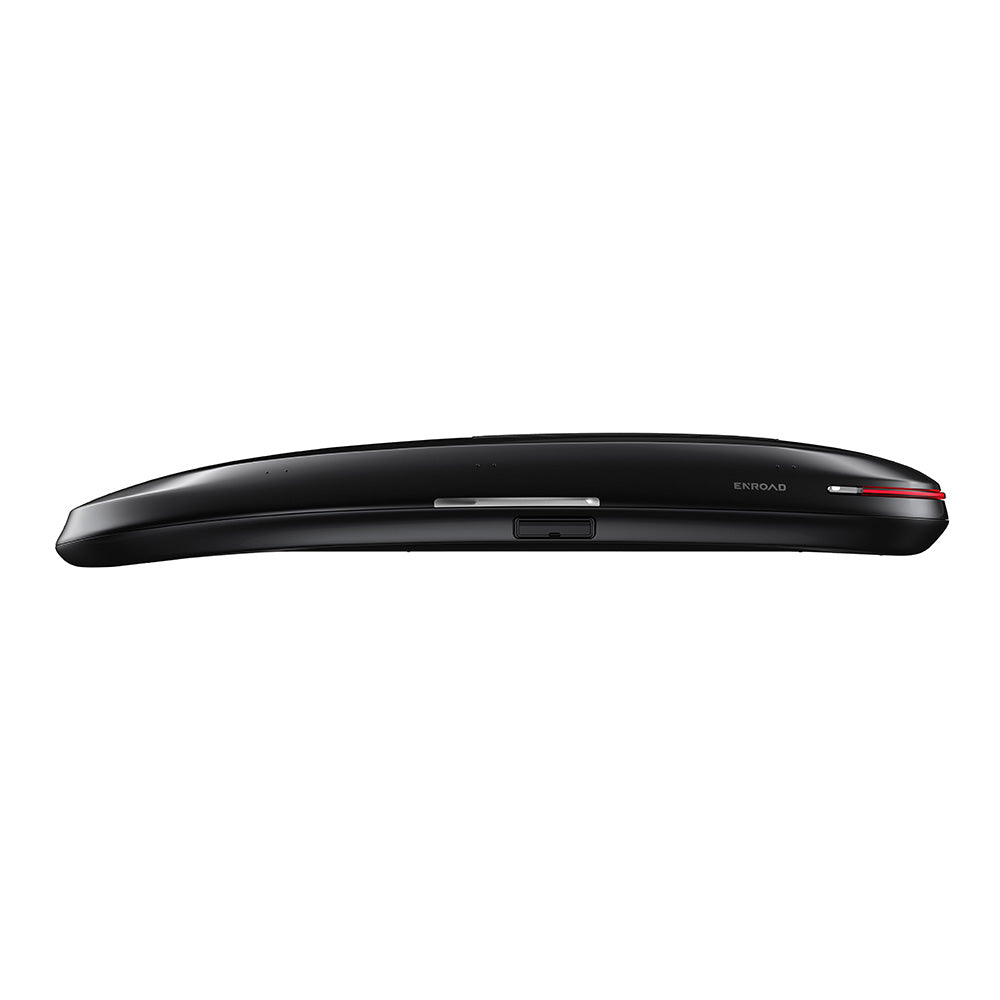

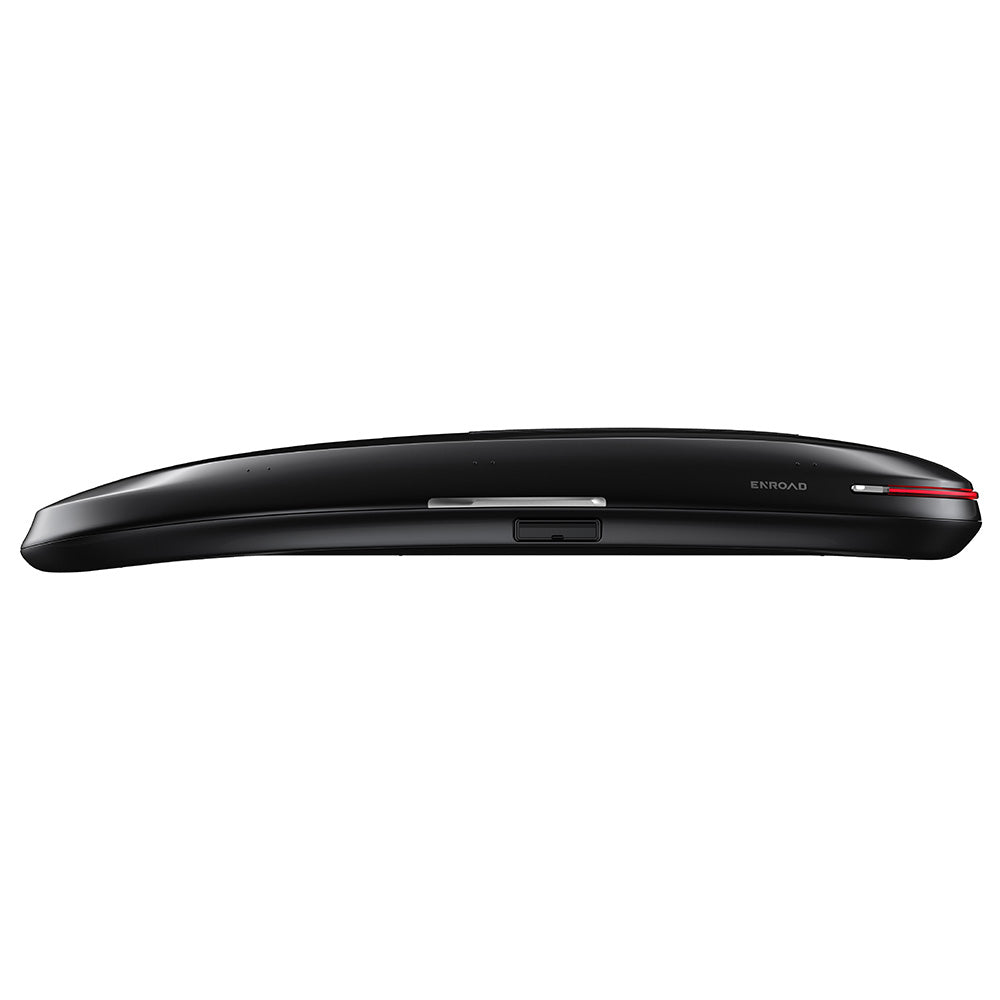

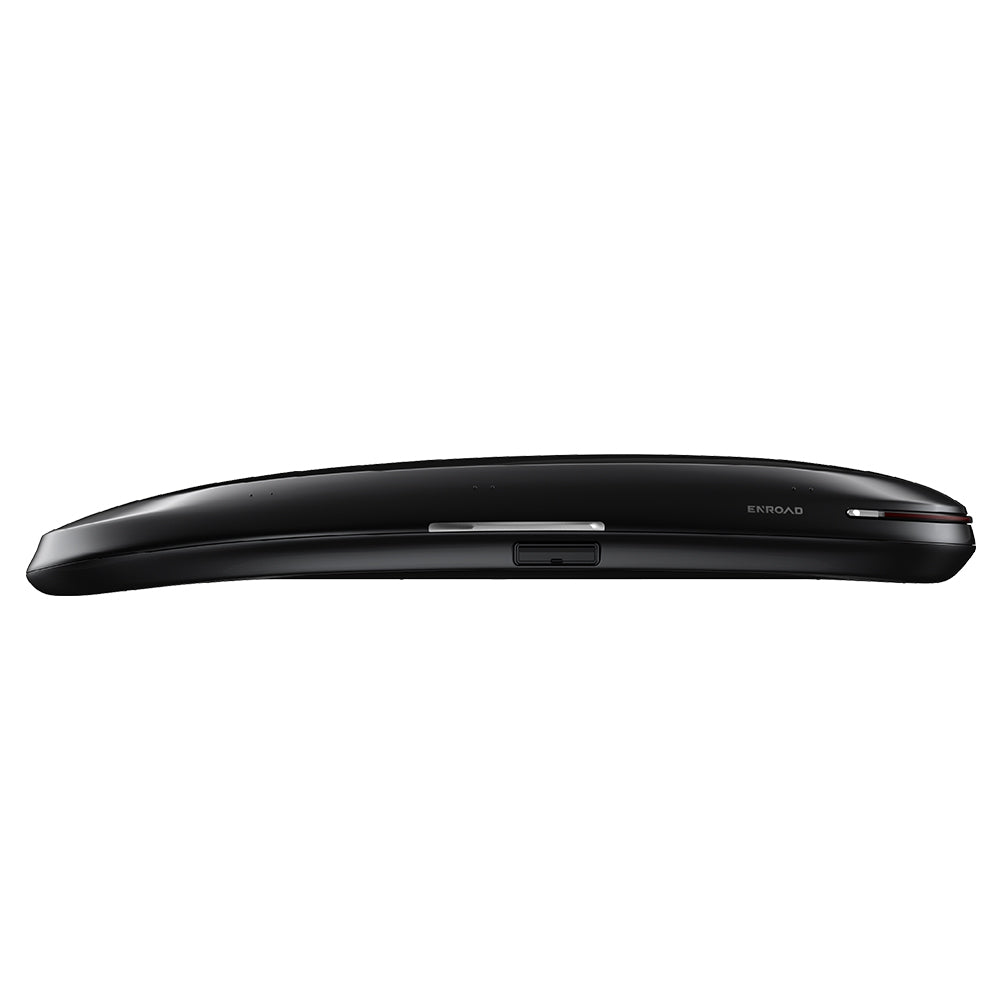

XXL Slim, XXL Slim E capacity: 16 cu ft (450L)

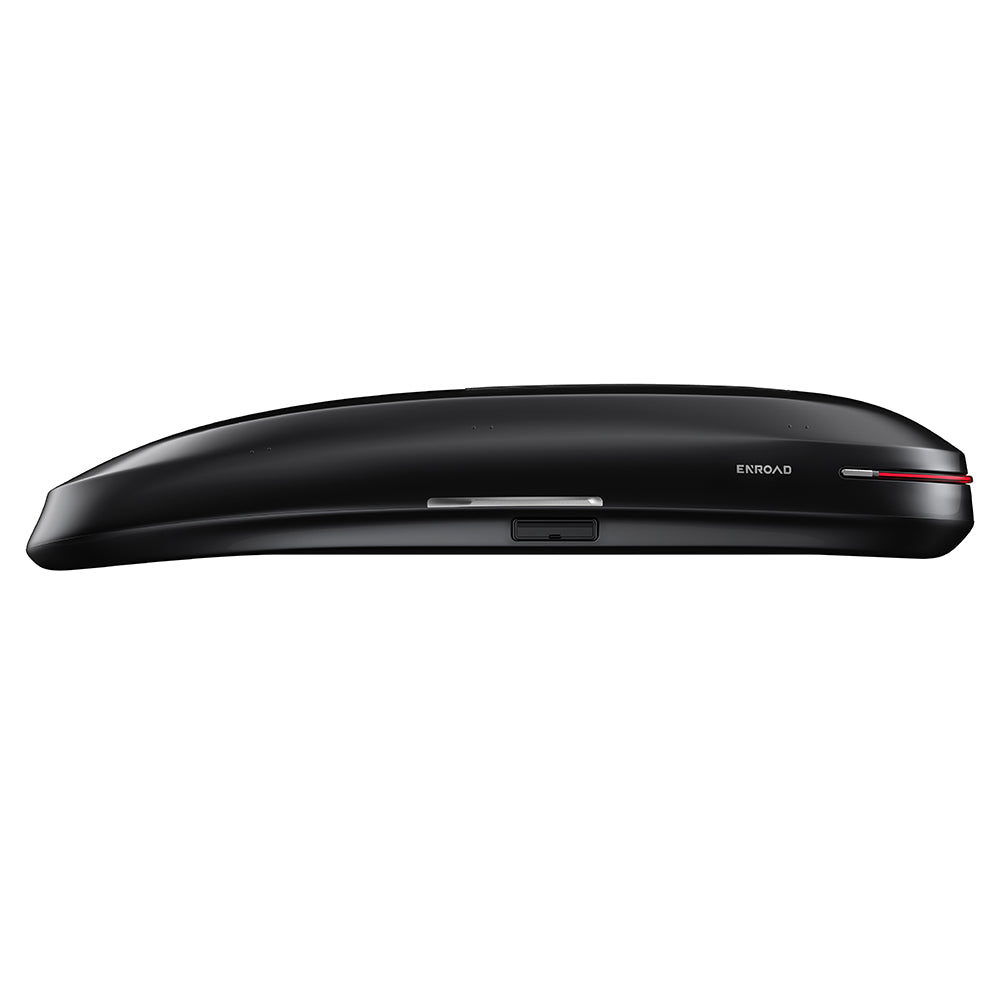

XXL, XXL E capacity: 21cu ft (600L)

XL Slim, XL Slim E can hold: 4 standard 20-inch suitcases and other small items
3-4 pairs of skis (under 74.8″ / 190 cm) and other small items
3-4 snowboards and other small items
(*Max load for each type of item; not loading all listed items)
XL/XL E can hold:
3 standard 24-inch suitcases + 1 standard 22-inch suitcase and other small items
4-5 pairs of skis (under 74.8″ / 190 cm) and other small items
4-5 snowboards and other small items
(*Max load for each type of item; not loading all listed items)
XXL Slim, XXL Slim E can hold:
5 standard 20-inch suitcases and other small items
3-4 pairs of skis (under 80.7″ / 205 cm) and other small items
3-4 snowboards and other small items
(*Max load for each type of item; not loading all listed items)
XXL, XXL E can hold:
2 standard 26″ suitcases plus 2 standard 24″ suitcasesand other small gear
4-5 pairs of skis under 80.7″(205cm) and other small gear
4-5 snowboards and other small gear
(*Max load for each type of item; not loading all listed items)

The Nomadix Pro Roof Box has soft rubber waterproof seals where the top and bottom lids meet, effectively preventing water from entering during rainy weather and car washes. (*Note: Water may enter through gaps at the bottom and quick clamps (ClickHold TM system) during car washes, so avoid spraying water directly at these gaps or remove the Roof Box.)

The Nomadix Pro Roof Box is designed to handle speeds up to 130 km/h (80.7mph). However, vehicle speed should be adjusted based on road type, road quality, wind conditions, traffic intensity, and local regulations.

You can measure the crossbar's dimensions to determine compatibility with the Nomadix Pro Roof Box:
Oval/wing shape: width 58-85mm; height 15-40mm
Square: width 55-85mm; height 15-36mm
Round: diameter 35-38mm

The Nomadix Pro Roof Box is compatible with most SUVs, station wagons, hatchbacks, MPVs, and sedans. There are 4 criteria to determine compatibility:
1. Check vehicle model and length: SUV, station wagon, hatchback, MPV length ≥ 161.4″ (4.1m); sedan length ≥ 165.4″ (4.2m).
2. The Roof Box mounts on roof crossbars, and the distance between your crossbars must be 15.7-41.3″ (40cm-105cm).
3. Crossbar dimensions:
Oval/Wing: width 2.28″-3.35″ (58-85mm); height 0.59″-1.57″ (15-40mm)
Square: width 2.17″-3.35″ (55-85mm); height 0.59″-1.42″ (15-36mm)
Round: diameter 1.38″-1.50″ (35-38mm).
4. To avoid blocking the trunk lid, the distance from the front crossbar to the roof-trunk intersection should be > 46.5″ (118cm).

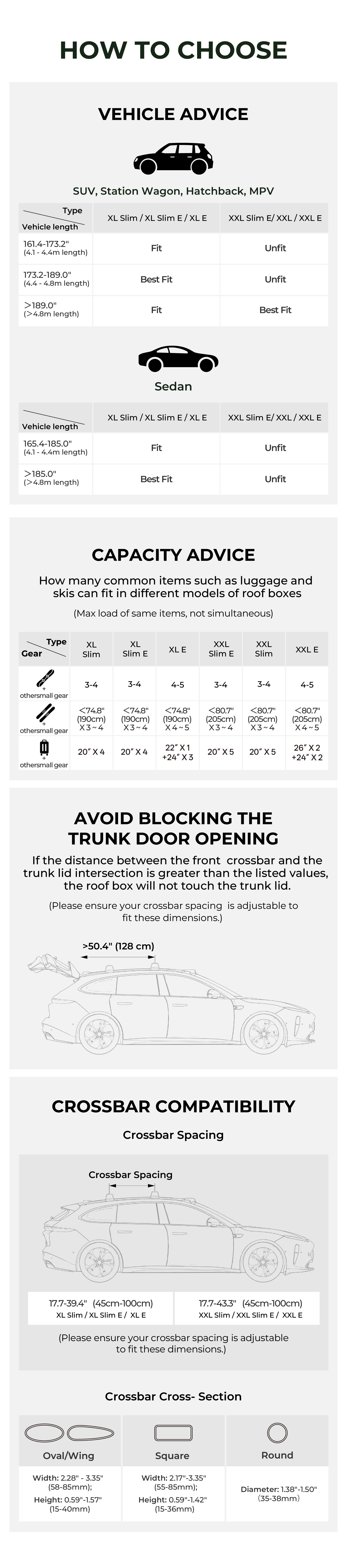

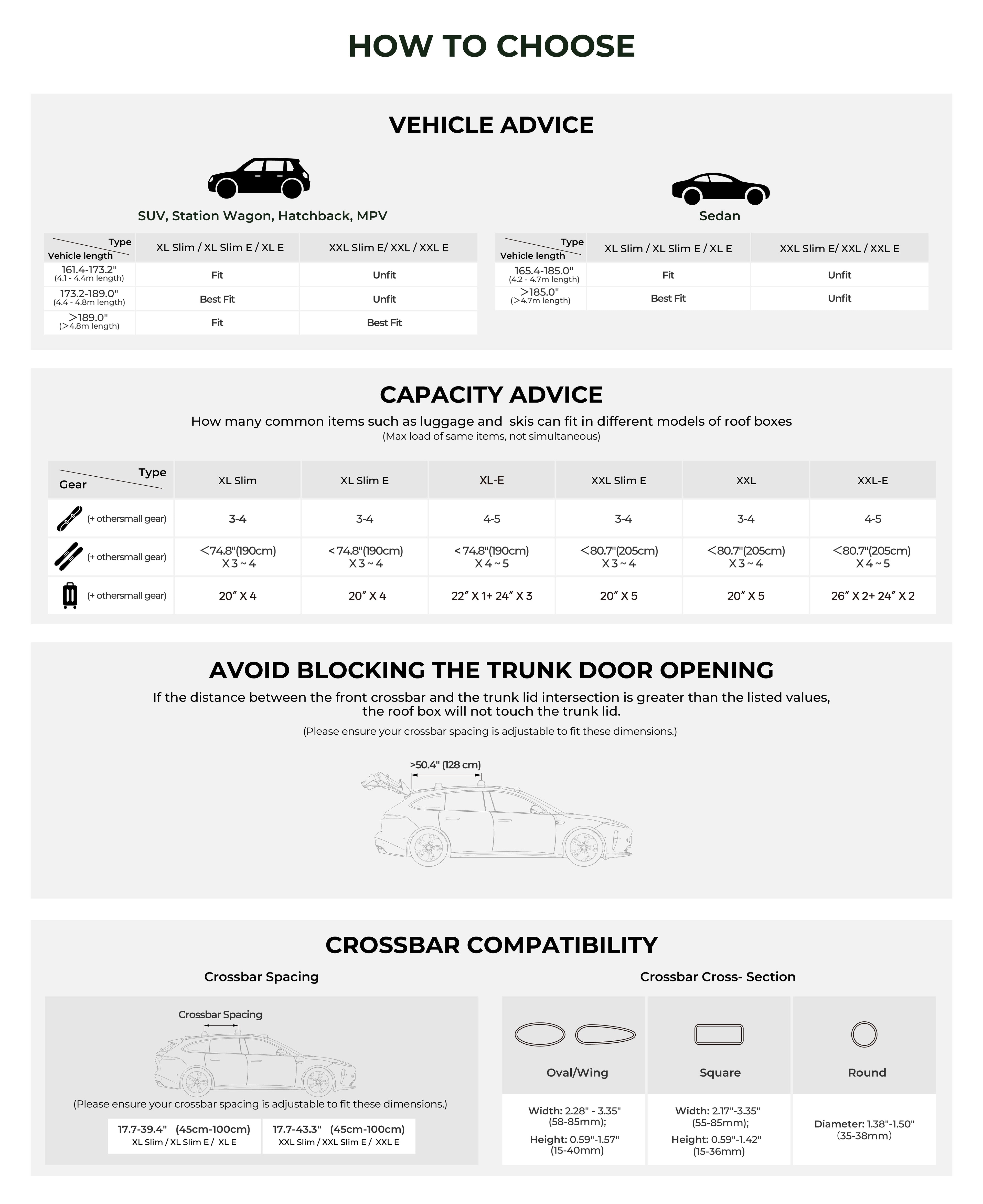

First, estimate which size roof box will best
match your vehicle. Typically, larger vehicles are paired with larger roof
boxes.
1.1 If your vehicle is an SUV, station wagon, hatchback, MPV, or similar,
follow these recommendations:
1.1.1 For vehicles between 4.1m (161.4in) and 4.4m (173.2in) in
length,XL is fits.
1.1.2 For vehicles between 4.4m (173.2in) and 4.8m (189.0in) in length, we
recommend the XL
size.
1.1.3 For vehicles longer than 4.8m (>189.0in), we recommend the XXL size, though XL also fits.
1.2 If your vehicle is a sedan, follow these recommendations:
1.2.1 For vehicles between 4.2m (165.4in) and 4.7m (185.0in) in length, XL
is fits.
1.2.2 For vehicles longer than 4.7m (>185.0in), we recommend the XL size.
Next, check if the capacity of the different models suits your needs:
2.1 The XL Slim and XL Slim E models can fit:
4 standard 20" rolling suitcases and other small gear
3-4 pairs of skis (under 190cm) and other small gear
3-4 snowboards and other small gear
(*Max load for each type of item; not loading all listed items)
2.2 The XL and XL E
models can fit:
3 standard 24" rolling suitcases + 1 standard 22" rolling
suitcase and other small gear
4-5 pairs of skis (under 190cm) and other small gear
4-5 snowboards and other small gear
(*Max load for each type of item; not loading
all listed items)
2.3 The XXL Slim E and XXL Slim models can fit:
5 standard 20" rolling suitcases and other small gear
3-4 pairs of skis (under 205cm) and other small gear
3-4 snowboards and other small gear
(*Max load for each type of item; not loading
all listed items)
Now check if your crossbars are compatible with the roof box:
2.4 The XXL, XXL E
models can fit:
2 standard 26″ suitcases plus 2 standard 24″ suitcasesand other small
gear
4-5 pairs of skis under 80.7″(205cm) and other small gear
4-5 snowboards and other small gear
(Max load for each type of item, not loading all
listed items)
3.1 Check the crossbar profile dimensions:
For oval/wing-shaped bars: width 2.28"–3.35" (58–85mm); height 0.59"–1.57"
(15–40mm)
For square bars:
width 2.17"–3.35" (55–85mm); height 0.59"–1.42"
(15–36mm)
For round bars:
diameter 1.38"–1.50" (35–38mm)
3.2 Measure the center-to-center distance between your crossbars:
For the XL size:
17.7"–39.4" (45cm–100cm)
For the XXL size:
17.7"–43.3" (45cm–110cm)
*Please ensure that your crossbars are adjustable to fit within these
dimensions.
3.3 Finally, measure the distance from the front crossbar to the point
where the roof meets the rear hatch: this distance must be larger than the
value listed below for the roof box not to interfere with the rear hatch
door. (*Make sure your crossbar distance is adjustable to fit within these
ranges.)
For the XL,XXL size:
>50.4" (128cm)

1. The models with "Slim" are the ultra-thin versions, which offer better clearance when dealing with height restrictions. The non-Slim models are thicker with larger capacities.

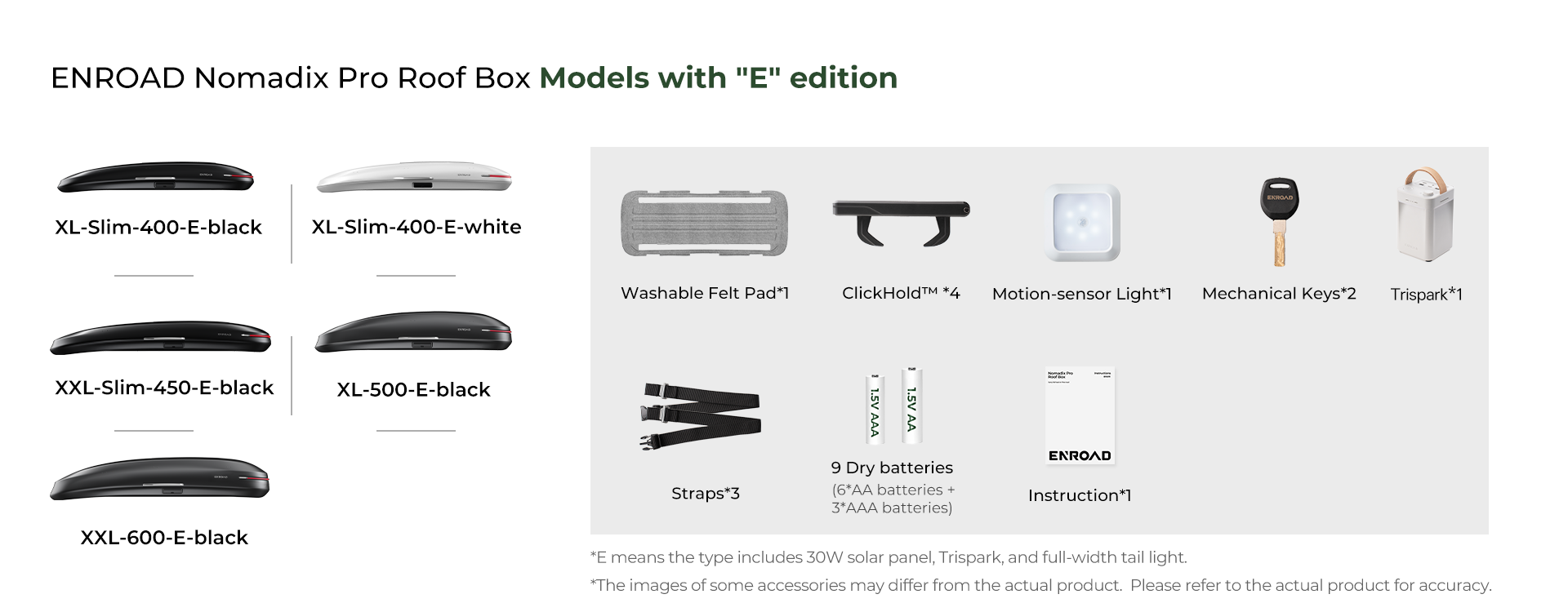

2. The models with an "E" designation include a full-width tail light, Trispark, and a 30W solar panel (which charges the Trispark all through the day).

The maximum weight capacity is 165 lb (75 kg).

XL Slim E and XL models weigh 66.1 lb (30 kg)
XL E and XXL Slim models weigh 68.3 lb (31 kg)
XXL Slim E and XXL model weighs 70.5 lb (32 kg)
XXL E models weigh 72.8 lb (33kg)

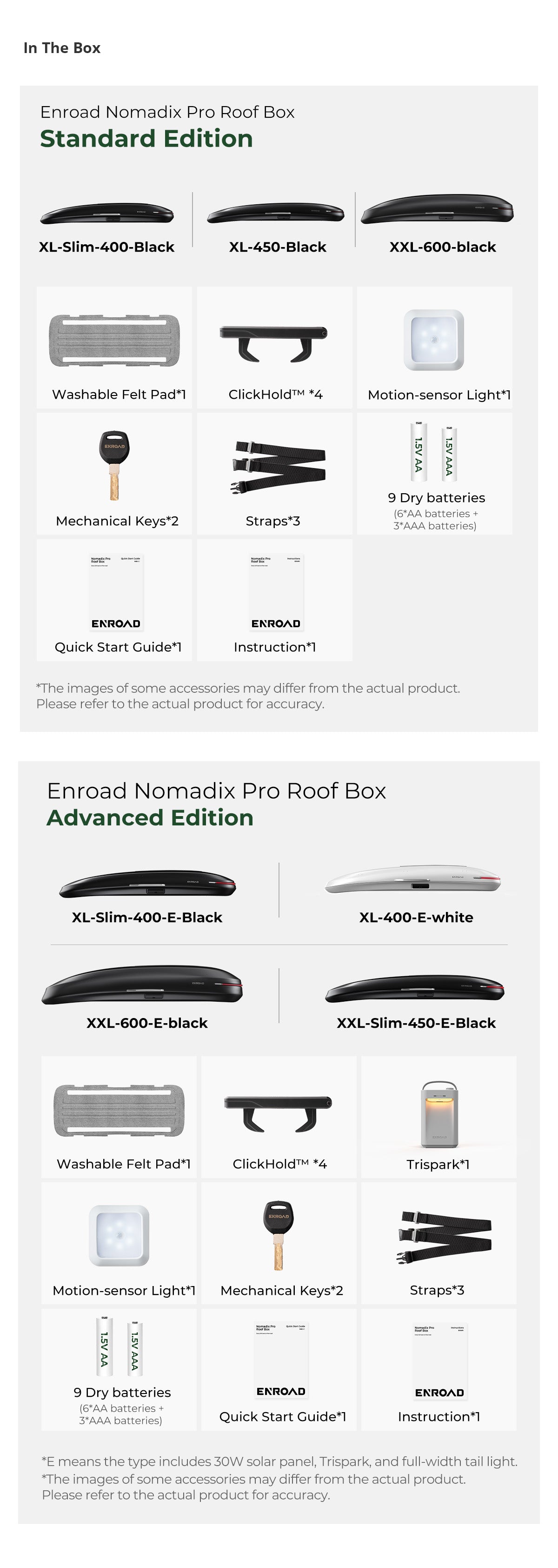

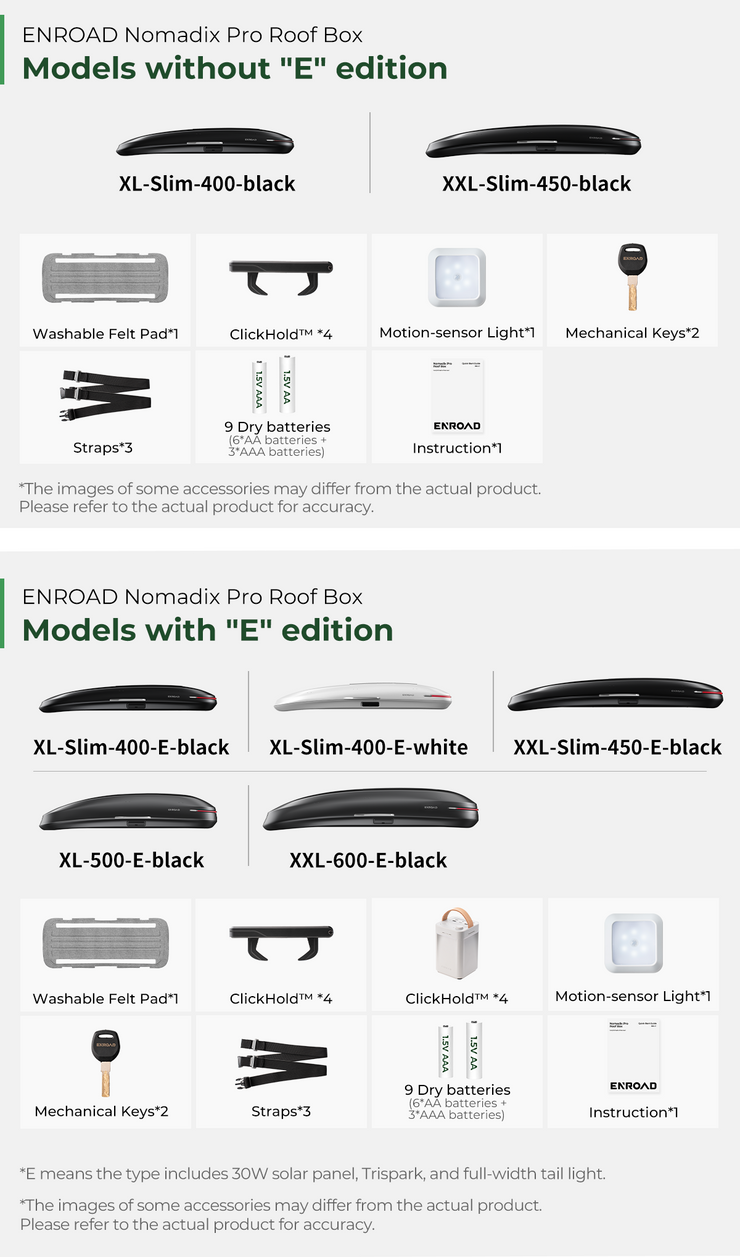

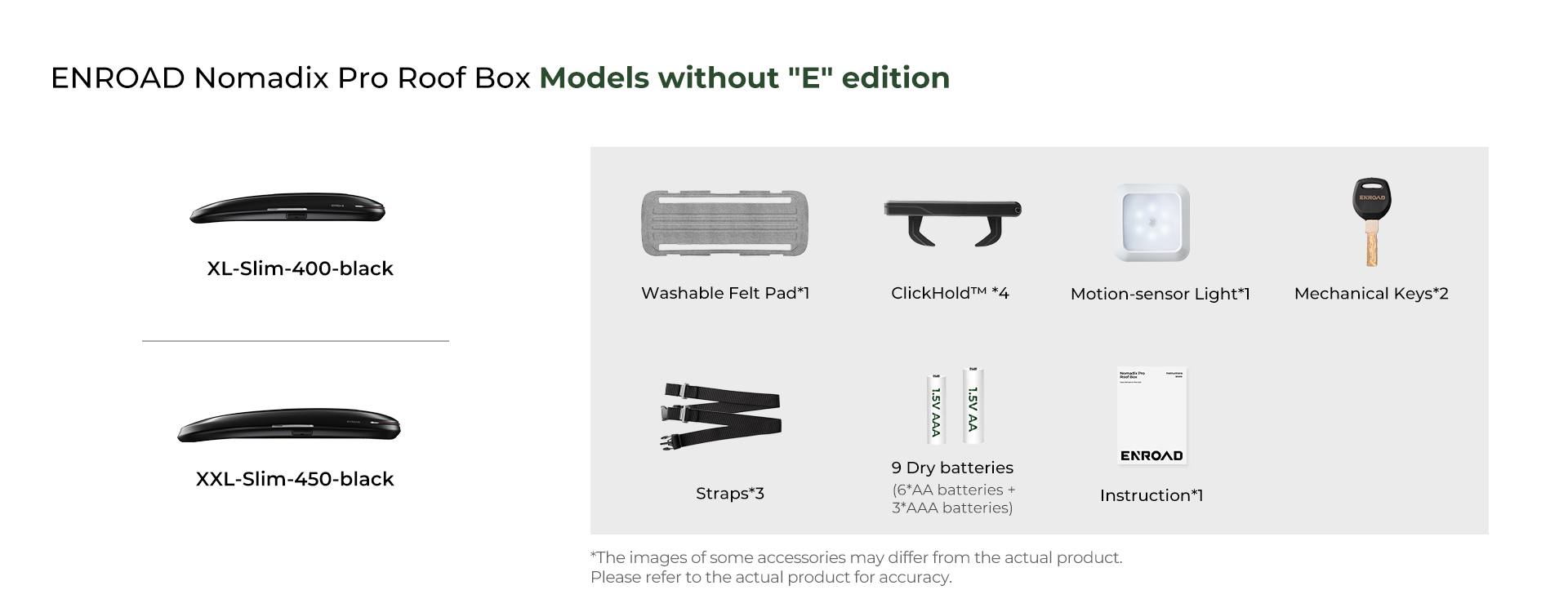

The Nomadix Pro Roof Box comes with 4 ClickHold™ System Quick Clamps. Simply use these clamps to quickly install the Roof Box onto your vehicle's roof crossbars.

The exterior of the Nomadix Pro Roof Box is made of UV-resistant PMMA+ABS composite materials, which provide excellent weather resistance and are suitable for regular outdoor use. The interior has five arched support beams on the lid, a 360° dual-shell reinforced base, plus 2 U-shaped steel reinforcements and a 1.8m (5.9ft) extended carbon steel bar for superior durability.

The Nomadix Pro Roof Box is designed for easy disassembly. You can remove the felt pad, rinse it with water, and allow it to dry before reattaching it.

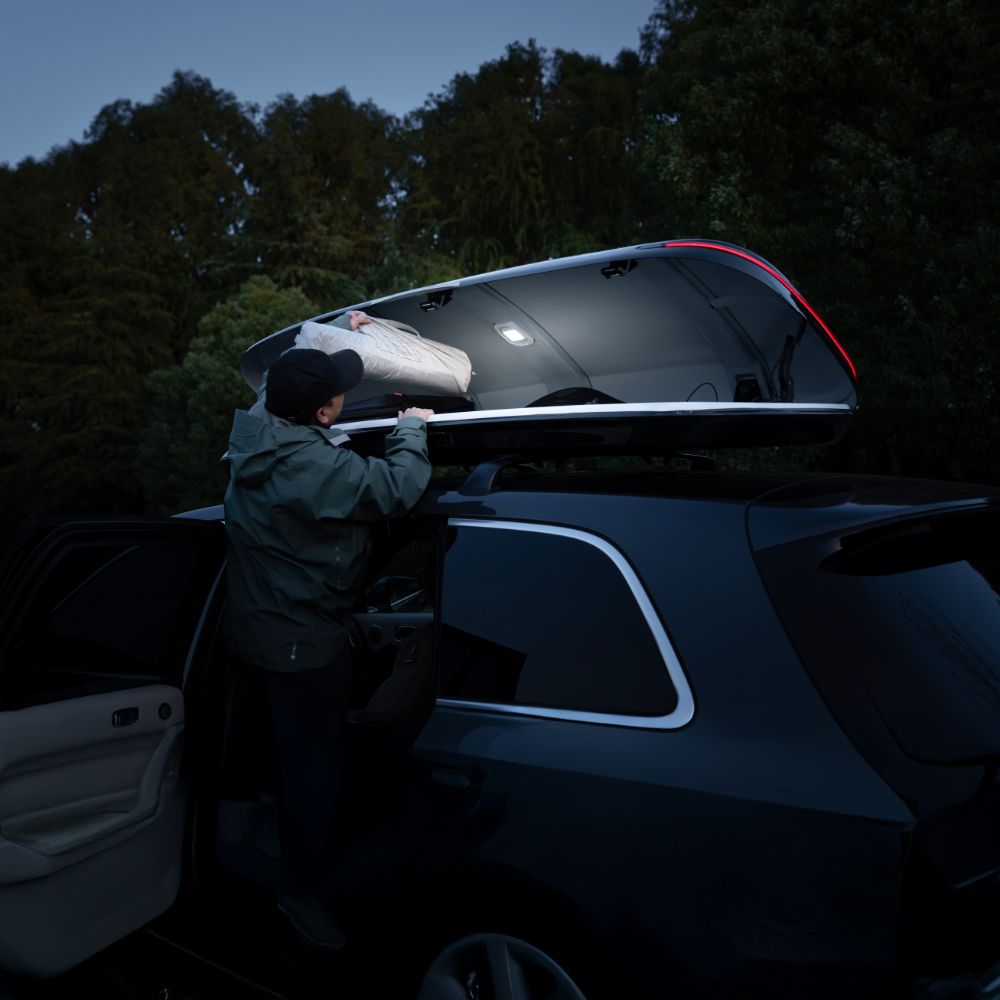

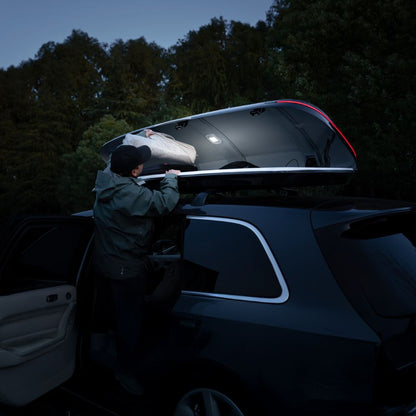

The motion-sensing light is powered by three AA batteries, ensuring that the fingerprint lock functions properly in both high and low-temperature environments.
